GREENPUMPS TECHNOLOGY INNOVATION AND RELIABILITY

GREENPUMPS is specialised in the design and application for water treatment, pharmaceutical, chemical, petrochemical and refinery applications.We continue every day to lead the way providing the most reliable sealless pumps available with the latest technology. All GREENPUMPS sealless equipments areengineered to comply with the new environmental rules “1990 EPA Clean Air Act”. Our mission is working for the future giving “zero emission” to preserve our environment

All Greenpumps pumps are 100% tested and set up by our skilled and specialized personnel before leaving the factory, so that they will work in safety condition at required performances. Any repair may be easily done at your workshop by your personnel, without need of any special tool. In order to maintain the performances for a long time, we suggest using only genuine spare parts.  Please send the inquiry to your area distributor or directly to Greenpumps.

SERIES OF PUMPS

Alloy Pumps

GPTA Caster MTA

Regenerative turbine pumps

View More Info

GPCA
Caster MCA

Centrifugal Pumps ISO 5199 / ISO 2858 / DIN 24256 / API 685

View More Info

GPA
Caster MPA

Sliding vanes pumps

View More Info

GPHV
Caster MHV

Oscillating piston pumps

View More Info

GPM.2 Caster M

Casted centrifugal pumps

View More Info

GPCTA
Caster MCTA

Regenerative turbine pumps, 2/3 stages

View More Info

GPFG

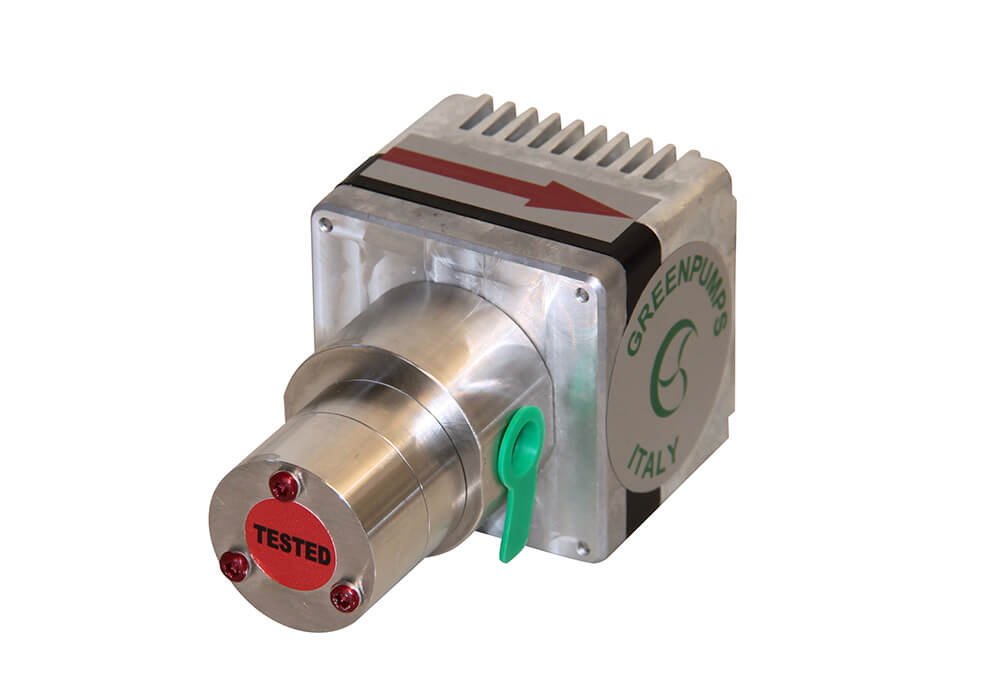

Magnetic drive Sealless Gear pumps

View More Info

GPIG

Hot Oil Gear pumps

View More Info

Special Pumps

GPA-GPTA - Caster MPA/MTA

Sanitary

These pumps are designed for sanitary fluid applications, where keeping the pump cleaned of any process residual is fundamental.

Mirror finishing of all external and parts in contact with pumped liquid, tri-clamp sanitary connections.

GPTA - Caster MTA

Internal mechanical seal

This pump is purposely designed for pumping hot fluids over 315°C (599°F).

Even if this is a magnetic drive Sealless pump it has been equipped with an internal mechanical seal in order to keep separate the high temperature pump volute and the magnetic coupling, which is maintained around 100°C (212°F), by using an external flushing compatible with the process fluid.

GPCTA - Caster MCTA

This double stage construction pump is purposely designed for low NPSHa, low flow and high head applications. Firsts stage equipped with Francis vane centrifugal impeller in order to keep low the NPSH required and to flood the second and/or third stage that installs one/two regenerative turbine impellers.

The pump for this specific application has been equipped with high-speed gearbox external to the pump, to further increase the duty point required.

GPCA / GPCAV Pump for liquid Metal

These pumps are only projected for the transfer of high temperature liquid metals, up to 450°C (842°F), vertical and horizontal configuration.

Possibility to have a traditional mechanical seal or Gas Seal.

GPCA / GPTA Pump for High Pressure - High Temperature

Pumps projected specially for extreme applications of pressure and/or temperature.

Pumps can be both centrifugal (GPCA) than turbine (GPTA).

• Maximum temperature 350°C (662°F)
• Design temperature 400°C (752°F)
• Maximum pressure 250 Bar (3626 PSI)
• Test pressure 375 Bar (5438 PSI)

Any onerous specifics will be evaluated form time to time by our technical office.
